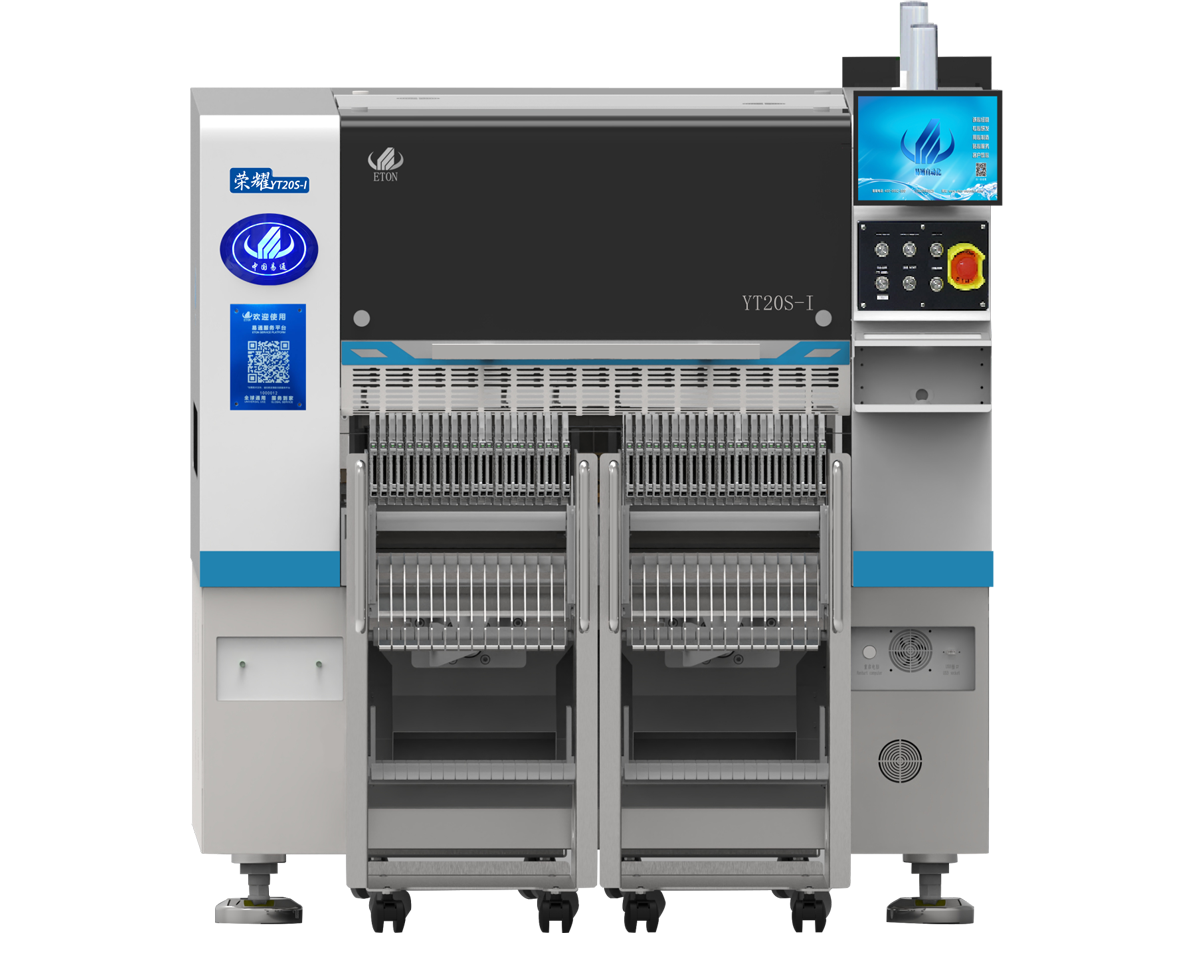

Eton Glory Series - YT20S-I Chip Mounter
Dual-track dual-arm, built-in single-track transplanting module, newly upgraded mounting head, integrated frame casting
Breaking through the industry convention, the four-module ultra-high-speed pick and place machine, can mount two products and four PCB board at the same time.

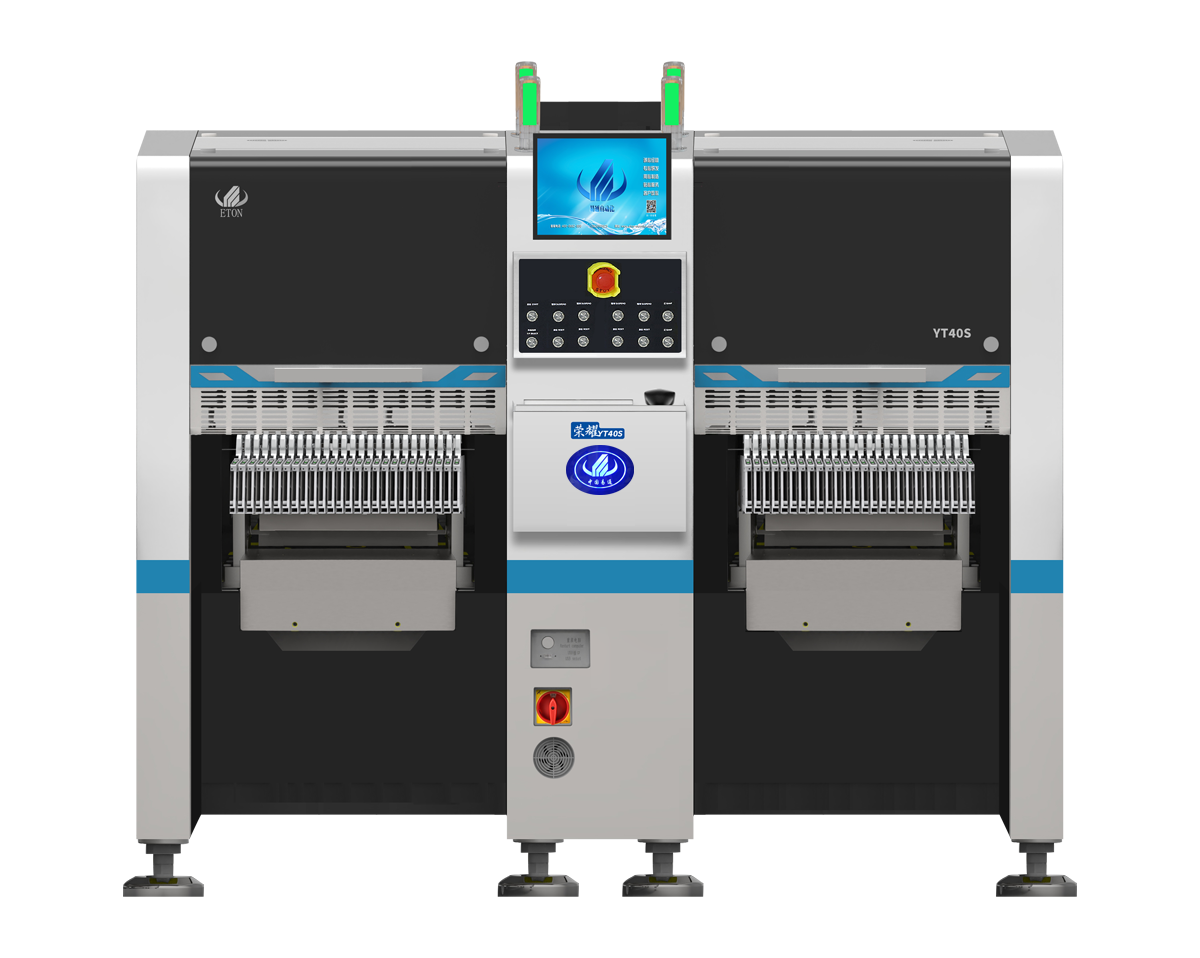

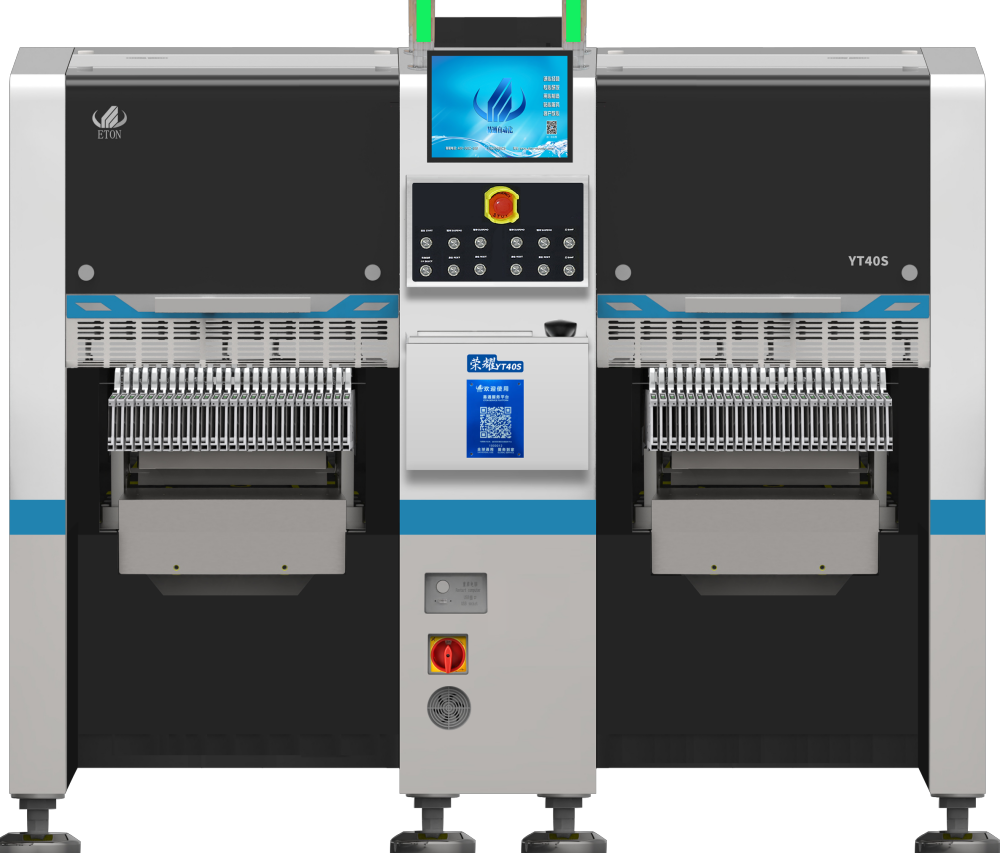

Model: YT40S
◇ Four Gantry with Four lane, Four mounting module mounting independently at the same time;
◇ Flexible PCB handling capabilities;
◇ X, Y, Z axis all adopt self- developed high-end magnetic linear motor;
◇ Support automatic nozzle change function(option);
◇ Low energy consumption, 220V single-phase;
◇ Each nozzle could be CPK testing independently;
◇ Apply to 0201~15*15mm tape reel package
High-end roll to roll High-speed pick and place machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.

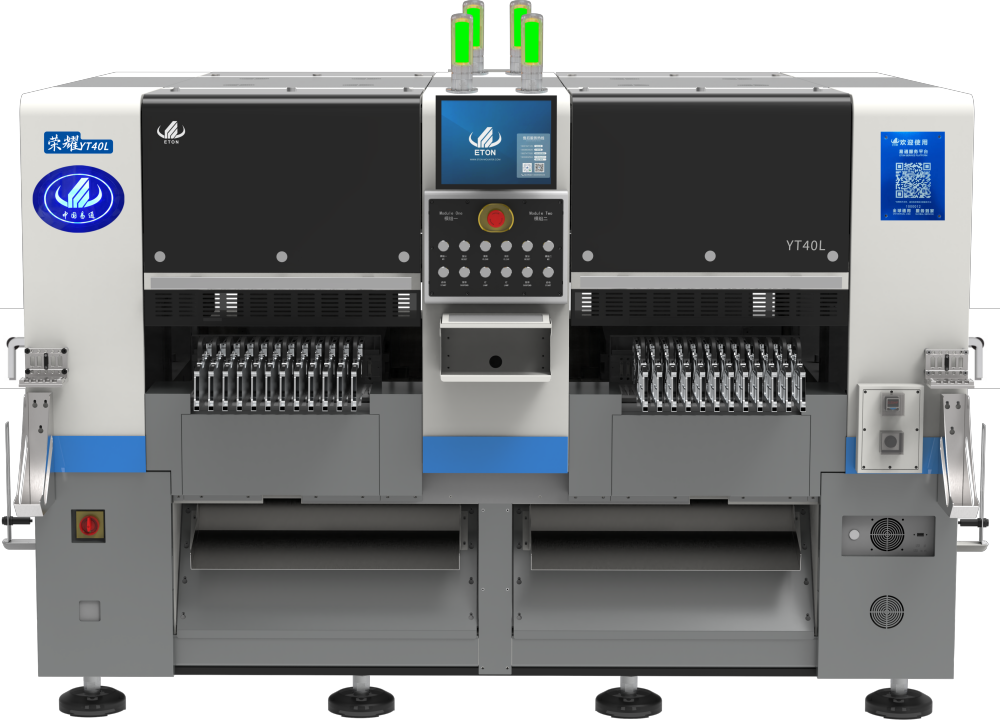

Model: YT40L
◇ LED chip, chips components, IC, etc. One time mounting;
◇ Four lane, two gantry, can mount two different products at same time ;Flexible Production with more option function
◇ Save time for production changeover and sample proofing;
◇ X,Y, Z axis all adopt self-developed high-end magnetic linear motor;
◇ Y axis adopt double drive gantry structure
◇ Apply to 0201mm~15*15mm tape reel package

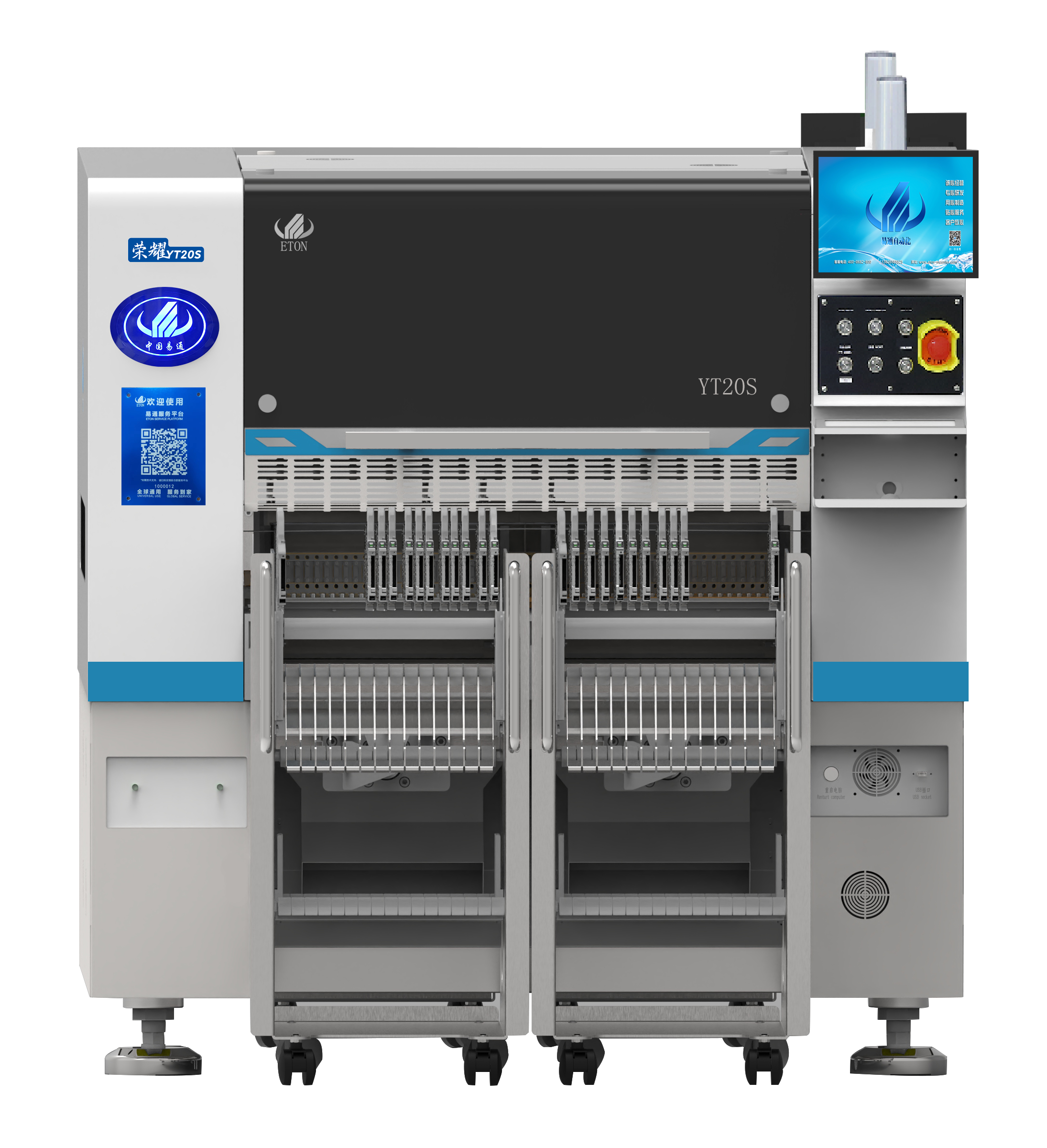

High Precision Double Head 98000 CPH Linear Motor SMT Mounter Machine YT20S
Dual Module SMT Precision Mounter Machine
Model: YT20S
◇ Applied to 0201-40*40 smd components
◇ Support high precision fixed vision camera option
◇ 20 Heads with 98000 CPH mounting speed
◇ Flexible Production with more option function
High-end roll to roll High-speed pick and place machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.

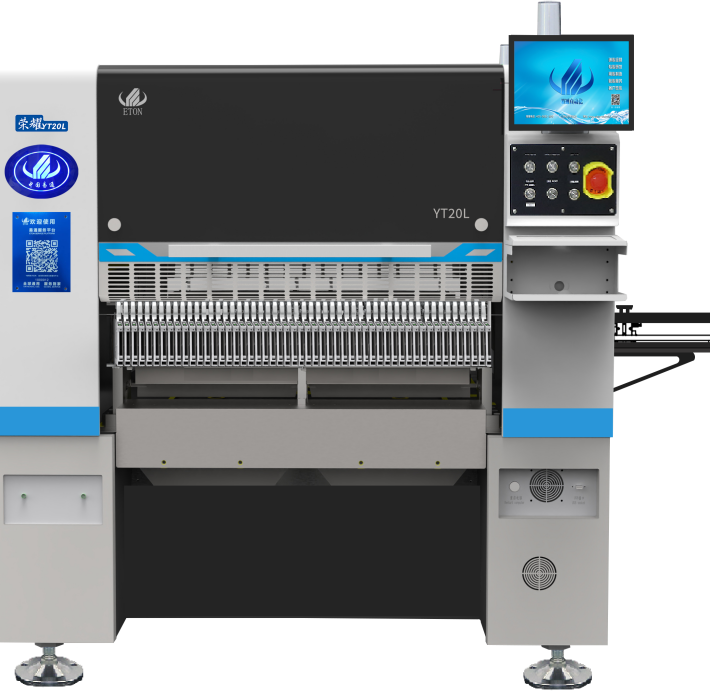

Model: YT20L
◇ LED chip, chips components, IC, etc one time mounting;
◇ Two lane, two gantry, can mount two different products at same time ;
◇ Save much time for production changeover and sample proofing;4.X,Y, and Z axis all adopt self-developed high-end magnetic linear motor;
◇ Y axis adopt double drive gantry structure
◇ Apply to 0201mm~15*15mm tape reel package

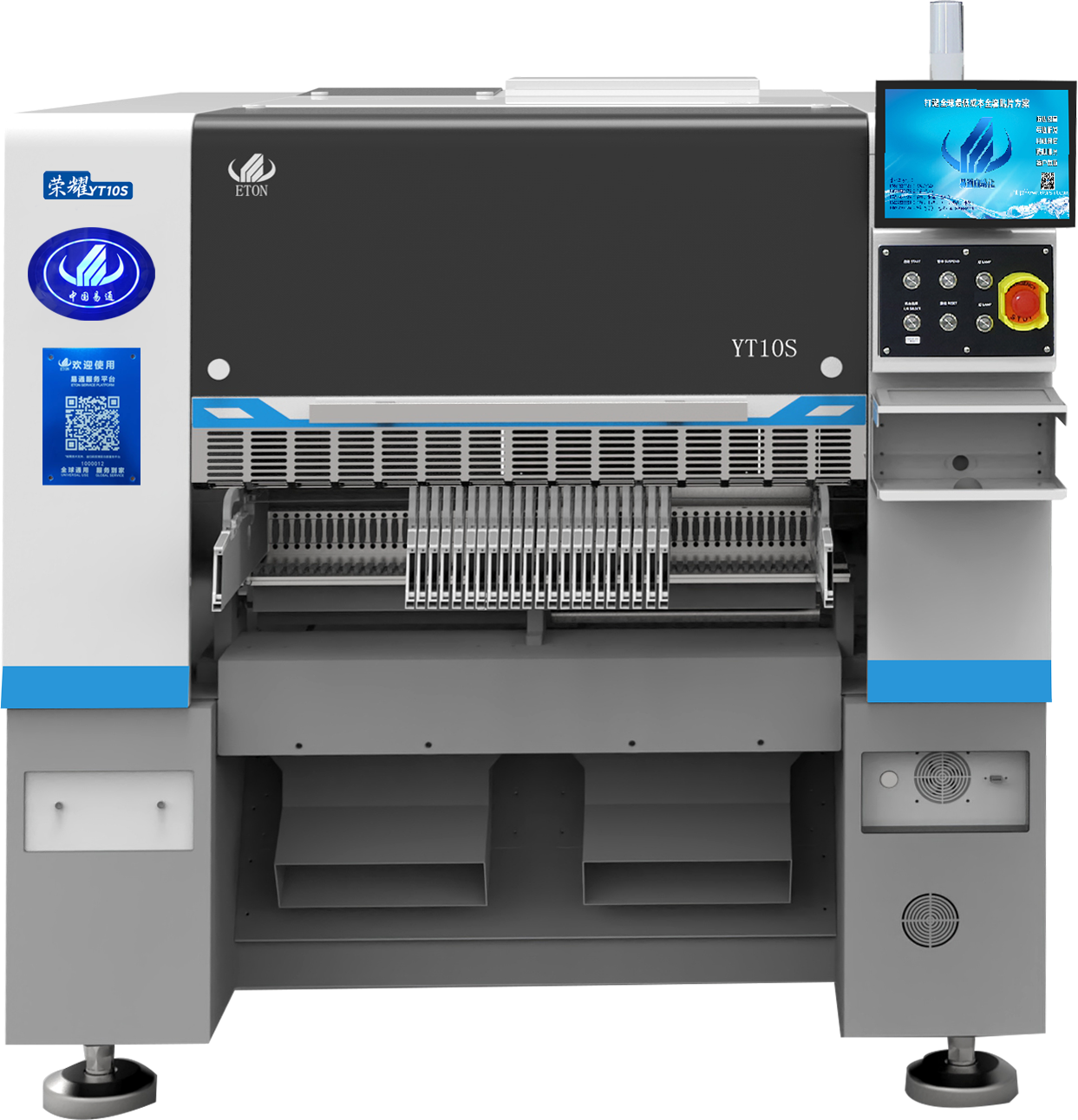

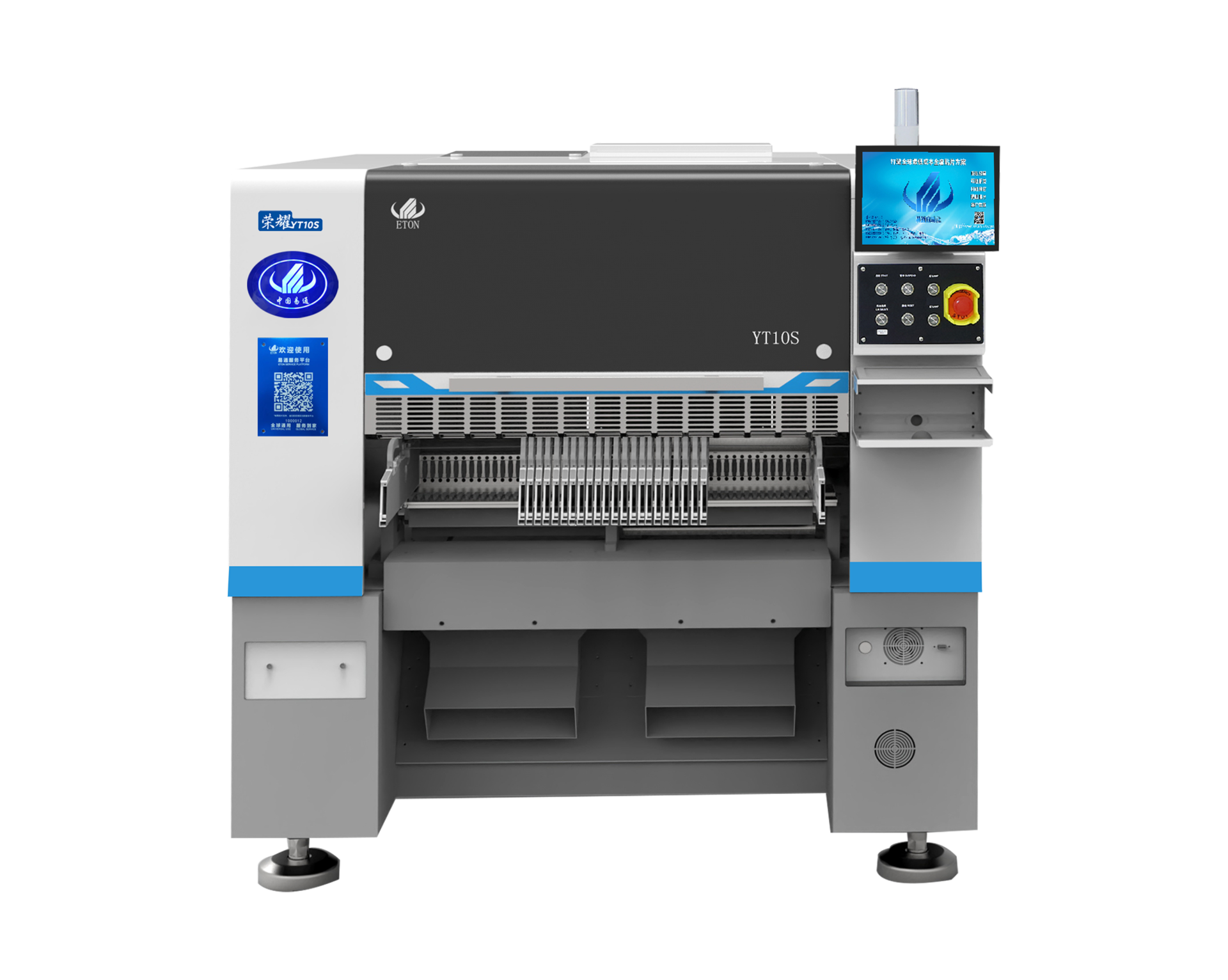

Flexible Efficiency Intelligent SMT Mounter Machine YT10S
Single Module SMT Precision Mounter Machine
Model: YT10S
◇ Applied to 0201-40*40 SMD components
◇ Support high precision fixed vision camera option
◇ 10 Heads with 48000 CPH mounting speed
◇ Flexible Production with more option function
