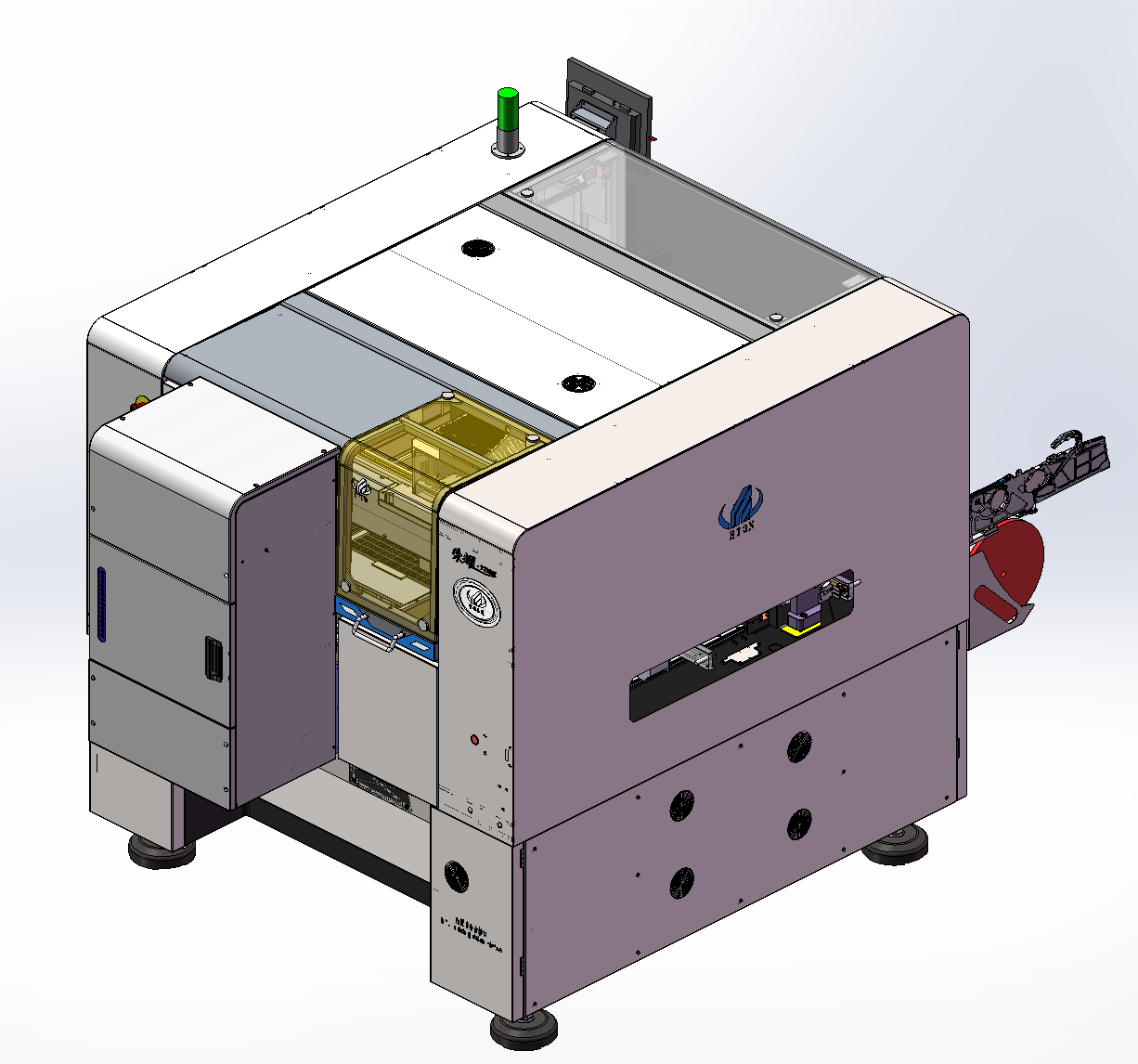

Flexible Efficiency Intelligent SMT Mounter Machine YT10S
Belongs to category:
Key words:
ETON
Product Description
Features
1.Exclusive mounting head design

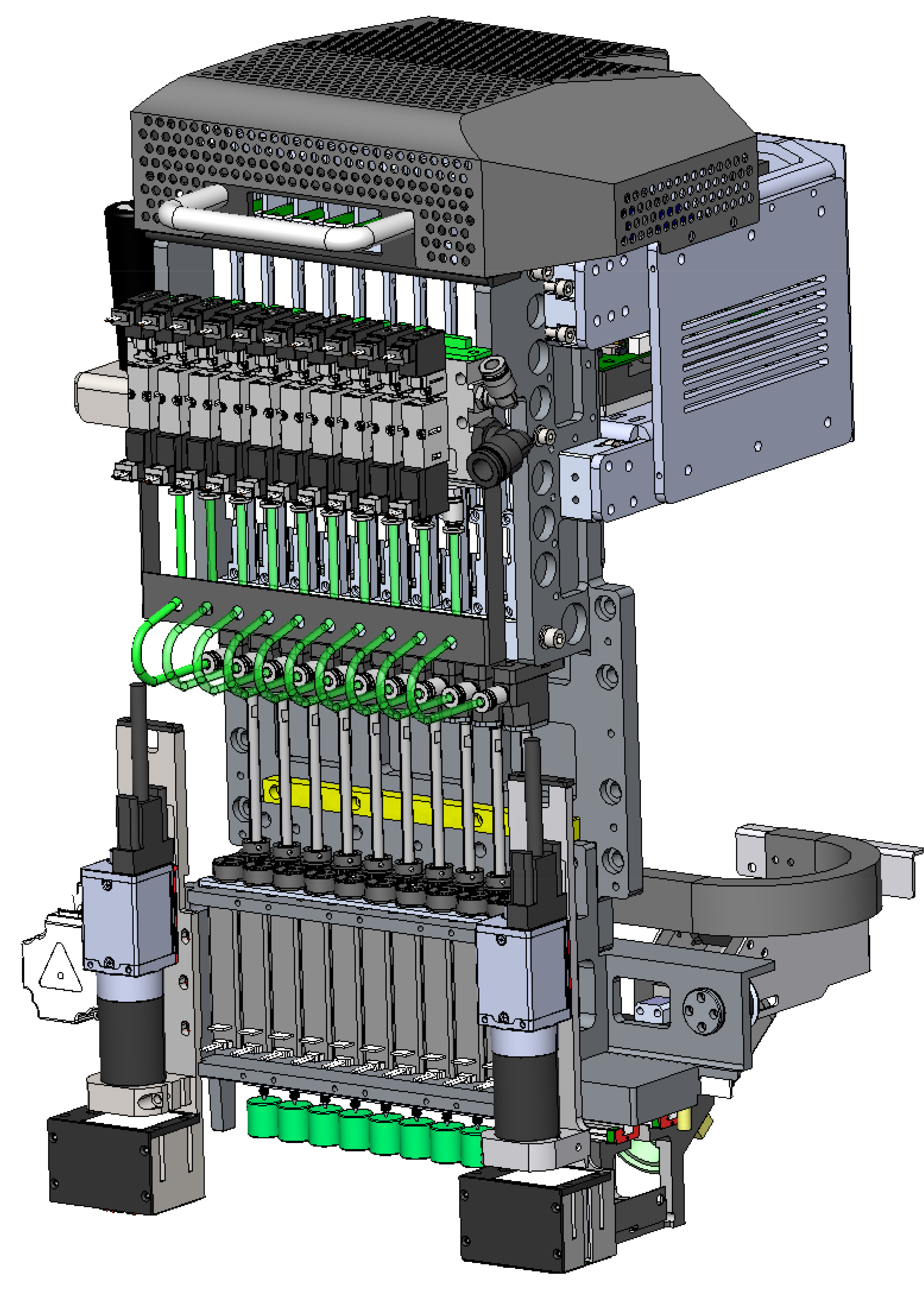

Integrated Placement Head
Lightweight, with an integrated head design and 10 sets of Z axes independently controlled by modular magnetic linear motors, resulting in significant improvements in speed, accuracy and stability
Precision Corner System
10 heads per module, The modular corner system independently controls the angle of each component to ensure high-precision placement.
Vacuum Sensing Device
Each placement head with an independent detection function, which improves the stability of the equipment and the reliability of the product.
2. High Precision Vision System

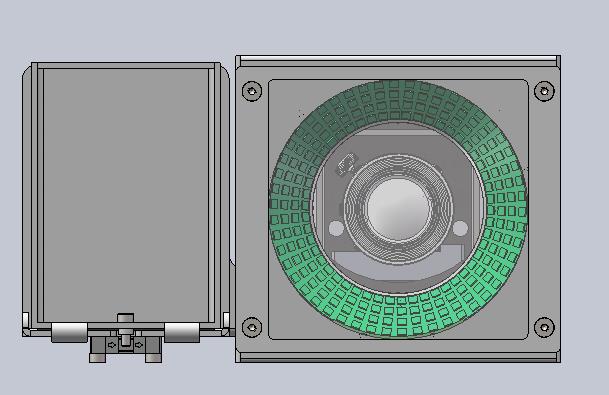

Fly Vision Camera
The integrated flying recognition camera shortens the vision routine time, after head picking , scanning and moving working at the same time. Support recognize smd component from 0201-15*15mm
Double Mark Recognition
Adopt 3-color illumination recognition, apply to any shape Mark and LENS(Blue-Ray scan), wider range of applications
Fixed flight vision camera (optional)
A fixed vision camera could quickly capture multiple head images at once and perform visual calibration of image position, alignment correction, and adjustable light source brightness. Support recognize smd component from 0201-40*40mm
3. Stable and Various Mode Feeding System
Fixed Feeder Station
Standard fixed feeder station number 52 pcs, meet most of electric pcb mounting required
ETON R&D Electric Feeder Design
Using ETON advanced new double head electric feeder design, precision and support for 0201 tiny component feeding. By optically correcting the feeding position of the component, achieve stable, accurate and high-speed feeding
Various feeding methods customized
Support option Feeder cart and IC Cabinet

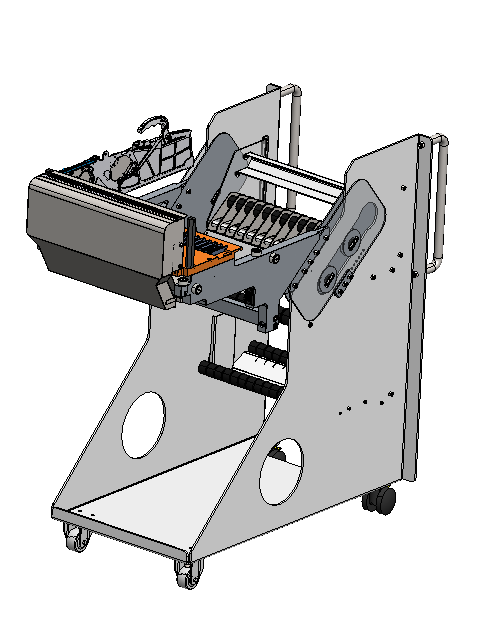

Feeder cart:
One feeder cart accommodates 23 pcs feeder stations, equipped with optional automatic tape cutting function. Depending on the product requirements, the feeder cart and IC cabinet can be switched with a one touch changeover method to minimize changeover time
IC Cabinet:
Support 15-layer trays, with the ability to switch freely
*Support mixed production
4. ETON R&D Intelligent Software System
Off-Line Programming function
Support off-line programming function, saves time during changeover cycles
Auto upgrade Software function
ETON R&D software equipped with AI Deep learning and automatic optimization functions
Coordinate import function
The software equipped with coordinate import function, easy for operate
5.Transmission System Structure Design
Flexible wiring
Flexibility in wiring achieved through modular placement heads and various production modes.
Parameter
|
Model |
YT10S |
|
PCB size(L*W) |
Max size: 500mm*450mm |
|
Mini Size: 50*50mm |
|
|
PCB thickness |
0.5-5mm |
|
Calibration method |
Vision alignment+Mark correction |
|
Repeat precision |
CHIP±0.03mm QFP±0.025mm CPK≥1.0（3σ） |
|
Mounting speed |
48000 CPH(Optimum speed) |
|
Components range |
0201-15*15mm packing material and IC material (optional fixed identification camera for 0201-40*40mm) |
|
Power |
1Φ220AC 50HZ 1.5KW |
|
Operating environment |
23℃±3℃ |
|
Transmission direction |
Standard: Single direction |
|
Position mode |
Optical |
|
X,Y,X Axis driveway |
High-end magnetic linear motor |
|
No.of Feeder station |
52 PCS |
|
No.of Heads |
10 PCS |
|
MES System interface |
Customized |
