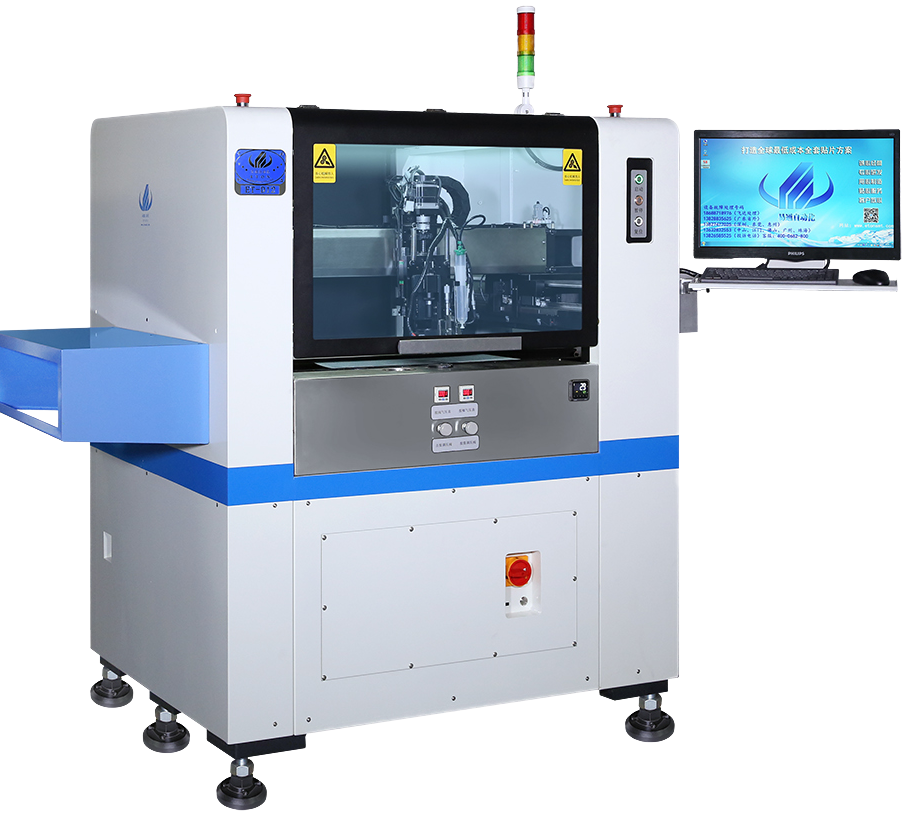

HT-E5D Dual moduleMultifunctional patch MachineTechnical parameters:

Dimensions

Long

1650mm

wide

2000mm

High

1550mm

Total weight

2000Kg

Circuit board

PCB board size

Maximum: 500*300mm Minimum: 100*100mm

PCB board thickness

Thickness: 0.5 to 3mm

PCB board fixing method

Electric+Pneumatic

Patch method

Group taking and sub-posting, sub-taking and sub-posting

Operating system

System

Windows 7

Software

Independent research and development

Display

Touch screen display

Input device

Keyboard, mouse

Visual system

Identify the number of cameras

4 sets of imported cameras

Flight recognition visual alignment, MARK correction

Repeat accuracy

±0.02mm

Component height

<18mm (automatic conversion)

Placement speed

80000CPH

Mounting parts range

With lamp beads, capacitors, resistors, IC special-shaped components, etc. (Max: 17mm, Min: 0402)

Component span

0.2mm

Using power

380AC 50Hz

Power supply power

8KW

Using environment

23℃±3℃

rail drive

Maximum length: 500mm

Transmission speed

＞500mm/sec

Transmission direction

Bidirectional

Transmission method

Auto online

Air pressure

＞5.0Kg/ CM²

Electrical control

ETON independent research and development

XYZ axis drive mode

High-end magnetic levitation motor + servo motor

Feeding system

The number of feeders that can be placed

Dual modules   60 PCS

Number of nozzles

Dual modules   16 PCS

Feeder type

Dual motor electronic feeder
