Wave Soldering Machine-ET-WS350C
Belongs to category:
Key words:
ETON
Product Description
Features

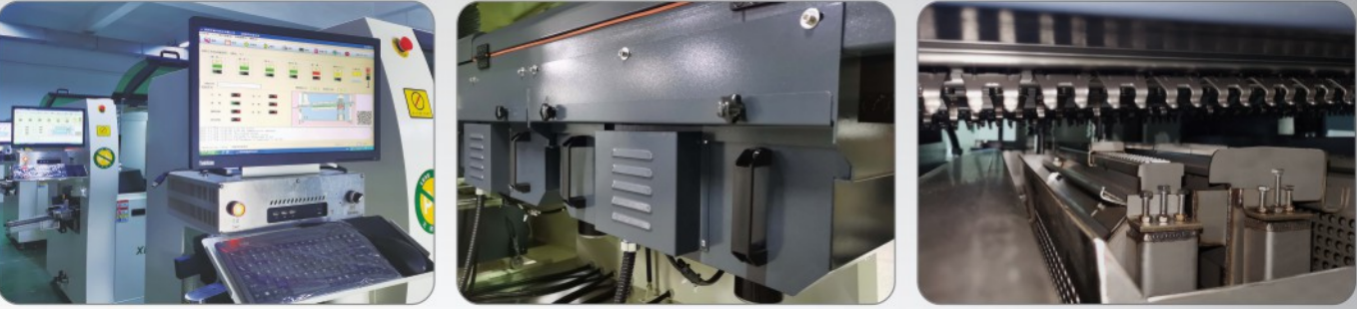

● Streamlined appearance design, curved tempered glass window, surface sprayed with paint, beautiful and durable;
● Three independent full hot air preheating zones, so that the PCB can get a good preheating and welding effect;
● Patented alloy chain claws, non-stick tin, no deformation, long life;
● High-strength wear-resistant guide rails, special anti-deformation structure to ensure that the guide rails are not deformed, and the board will not fall during transportation;
● Turbine, vortex rod, precision screw rod width adjustment, width adjustment accuracy less than 0.2mm;
● The transportation system adopts high-hardness transmission wheels to ensure the stability and safety of transportation;
● Maximum operating and maintenance space;
● Tin stove lifts and enters and exits, automatic and manual combination.
Parameter
|
Model |
ET-WS350C |
|
Dimension |
(L)3900*(W)1450*(H)1750MM |
|
Rack size |
(L)3200*(W)1400*(H)1750MM |
|
Weight |
Approx: 1600KG |
|
Total power |
24KW |
|
Operating power |
4.5KW |
|
Control method |
Computer+PLC control |
|
Power supply |
AC380V 50HZ |
|
Spray system |
|
|
Drive mode |
Stepping motor |
|
Spray pressure |
0.3-0.5MPa |
|
Nozzle cleaning |
Auto wash |
|
Flux flow control |
0-100ml adjustable |
|
Flux addition |
Auto/Manual |
|
Exhaust pipe |
200mm in diameter |
|
Ventilation method |
Up exhaust |
|
Preheating system |
|
|
Preheating method |
Hot air or IR tube |
|
No. Of preheating zones |
3 |
|
Preheating zone length |
1600MM |
|
Pre-heat temperature |
Room temperature~250℃ |
|
Preheating time |
Approx. 15min |
|
Transportation system |
|
|
PCB width |
50-350MM |
|
PCB transport direction |
Left to Right(option: Right to Left) |
|
Transport speed |
0-2000mm/min |
|
Transport height |
750±20MM |
|
PCB component height |
Top 120MM Bottom 12MM |
|
Speed control |
Frequency variable frequency speed control |
|
Titanium claw |
Quick-change finger/ heavy claw |
|
Rail angle |
3°~7° |
|
Tin furnace system |
|
|
Wave mode |
Motor drive |
|
Tin furnace material |
SUS/titanium/nodular cast iron |
|
Tin furnace heating method |
External heating |
|
Tin furnace power |
13.5KW |
|
Tin furnace temperature |
Maximum 35℃ |
|
Tin furnace capacity |
350-400KG |
|
Peak motor power |
1/2HP*2 3P AC220V |
|
Tin furnace melting time |
Approx: 120min |
|
Cooling system |
|
|
Cooling method |
Forced air |
|
Wash claws |
Auto |
