Product Description
Features

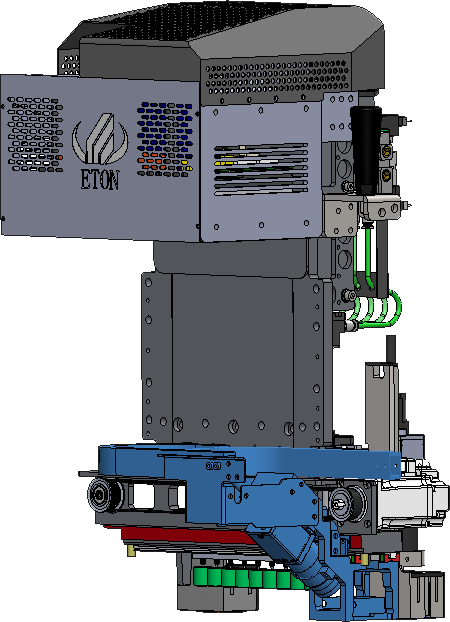

Integrated Placement Module
Lightweight, module is integrally formed, the 10 sets of Z axes are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability.

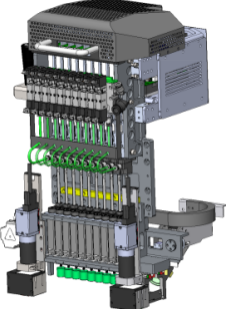

Precision Corner Syst
The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 mounting spindle per module, with a center distance of 16mm.
Vision System
The integrated high-speed and precise flying recognition camera enhances recognition accuracy,recognizing during X and Y axis movement to once again improve placement efficiency.
Vacuum Sensing Device
Each placement module with independent Adopting high-end magnetic linear motors and a multi-function Module, the placement capability has increased by 25% compared to traditional machines,with an optimum speed reaching 200000CPH.
Ultra-high-speed Capability
Adopting high-end magnetic linear motors and a multi-function Module, the placement capability has increased by 25% compared to traditional machines,with an optimum speed reaching 200000CPH.

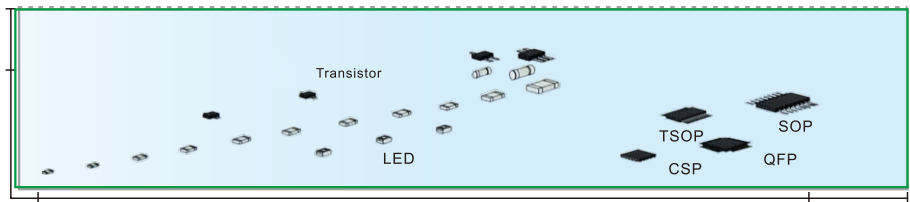

Component size
Optical recognition Camera
Head flight recognition components with size less than 15*15mm and height less than 10mm can be used to high-speed and high-precision identification.
● Double Mark Camera Recognition
High precision mark recognition system,adopt 3 color illumination recognition,apply to any shape Mark, wider range of application.
● Optical Recognition Camera
Head flight recognition, high speed and high precision identification, the component can do 0201-15*15mm, height 10mm, other height can be customized.
Parameter
|
Model |
YT40L |
|
|
Dimension |
2370*2210*1650mm |
|
|
PCB Size（L*W） |
250±10mm*any length |
|
|
PCB thickness |
0.1-0.5mm |
|
|
PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
|
|
No.of lane and gantry |
4 lane & 4 Gantry |
|
|
System |
Windows 10 |
|
|
Software |
R&D independently |
|
|
Off-line programming |
Available |
|
|
No.of head fly vision camera |
4PCS |
|
|
No.of Mark camera |
8PCS |
|
|
Calibration method |
Vision alignment+Mark correction |
|
|
Repeat precision |
Chip±0.03mm IC±0.025mm CPK≥1.33 |
|
|
Mounting height |
≤10mm |
|
|
Mounting speed (Optimum) |
200000CPH |
|
|
Components range |
0201-15* 15mm packaging material |
|
|
Power |
220AC 50HZ 5KW |
|
|
Operating environment |
25°C士3°45%~70%RH |
|
|
Transmission direction |
Standard: Single direction |
|
|
Transmission mode |
Online drive |
|
|
Position mode |
Optical |
|
|
Air consumption |
0.4-0.6mpa (4-6kgf/cm2) 150L/min |
|
|
Electrical control |
Independent research and development by ETON |
|
|
Motion control card module 1 set |
Independent research and development by ETON |
|
|
X,Y,Z Axis drive way |
High-end magnetic linear motor |
|
|
No.of Feeder station |
Double side: 104PCS(single side:52PCS) |
|
|
No.of Spindle |
40PCS |
|
|
Feeding way |
Electric Feeder |
|
|
MES System interface |
Customized |
|
|
Option |
||
|
Reel Tape Cutter |
Optional |
|
