PICK AND PLACE MACHINE YT20L
Belongs to category:
Key words:
ETON
Product Description
Features

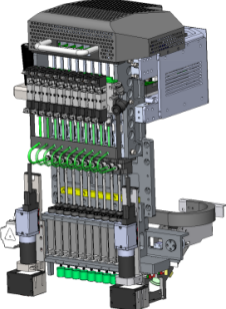

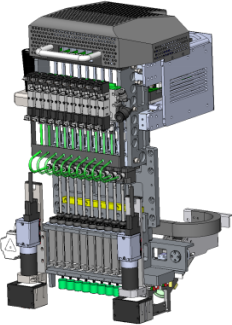

Integrated Placement Head
Lightweight, head is integrally formed, the 10 sets of Z axes are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability.

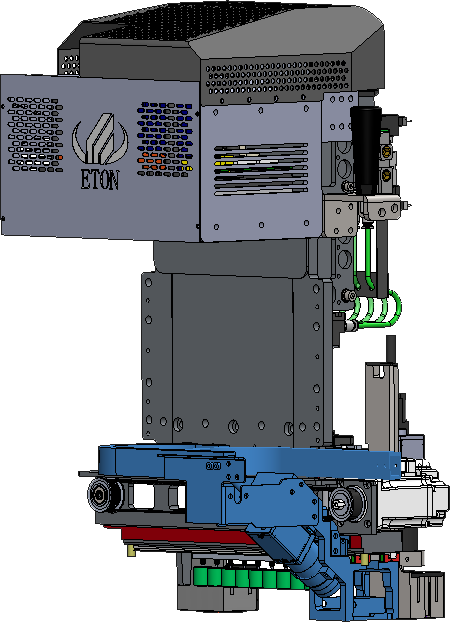

Precision Corner System
The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.
Vision System
The integrated high-speed and precise flight recognition camera enhances recognition accuracy,recognizing during X and Y axis movement to once again improve placement efficiency.
Vacuum Sensing Device
Each placement module with independent detection function, which improves the stability of the equipment and the reliability of the product.

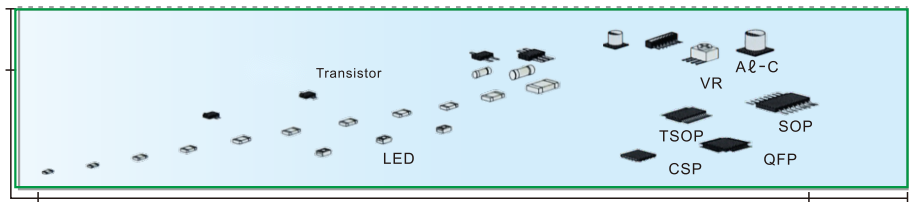

Component size
Optical recognition Camera
Head flight recognition components with size less than 15*15mm and height less than 10mm can be used to high-speed and high-precision identification.
●Double Mark Camera Recognition: High precision mark recognition system,adopt 3 color illumination recognition,apply to any shape Mark and LENS(Blu-ray scan)
Wider application
●Optical Recognition Camera
High-speed flight vision camera,quickly captures multiple spindle images at once, perform visual calibration of image position,alignment correction,adjustable light source brightness
Parameter
|
Model |
YT20L |
|
Dimension |
2240mm*2070mm*1650mm |
|
Total Weight |
2200kg |
|
PCB Length Width |
250±10mm*any length(option) |
|
PCB Thickness |
0.1-0.5mm |
|
PCB Clamping |
Cylinder clamping, vacuum adsorption |
|
Fixed rail |
2 Rails, 2 gantries |
|
System |
Windows10 |
|
Input Device |
Keyboard, Mouse |
|
No. of Camera |
2 PCS （Head flight vision camera） |
|
4 PCS Mark camera |
|
|
Repeat Precision |
CHIP±0.03mm IC±0.025mm Cpk ≧1.33 (3σ) |
|
Mounting Height |
Standard: ≦16mm Special setting:≦10mm |
|
Mounting Speed |
98000 CPH(Under best condition) |
|
Components |
0201~15*15MM packaging material |
|
Components Space |
0.2mm |
|
No. of Feeders Station |
Double side: 104 PCS (Single side:52PCS) |
|
No. Of spindle |
Double side: 20 PCS (Single side:10PCS) |
|
Power |
220AC 50HZ |
|
Power Consumption |
1.5kw |
|
Operating Environment |
23℃±3℃ 45%~70%RH |
|
Transmission Direction |
Single(left→ right or right→ left) |
|
Transmission Mode |
Online drive |
|
Position Mode |
Optical |
|
Air consumption |
0.4-0.6mpa (4-6kgf/cm2)150L/min |
|
Electrical control |
Independent research and development by ETON |
|
Motion control card module 1 set |
Independent research and development by ETON |
|
X,Y,Z Axis Drive way |
High-end magnetic linear motor |
|
Feeding way |
Electric feeder |
|
Production management MES system interface |
Customized |
|
Input Device |
Keyboard, Mouse |
