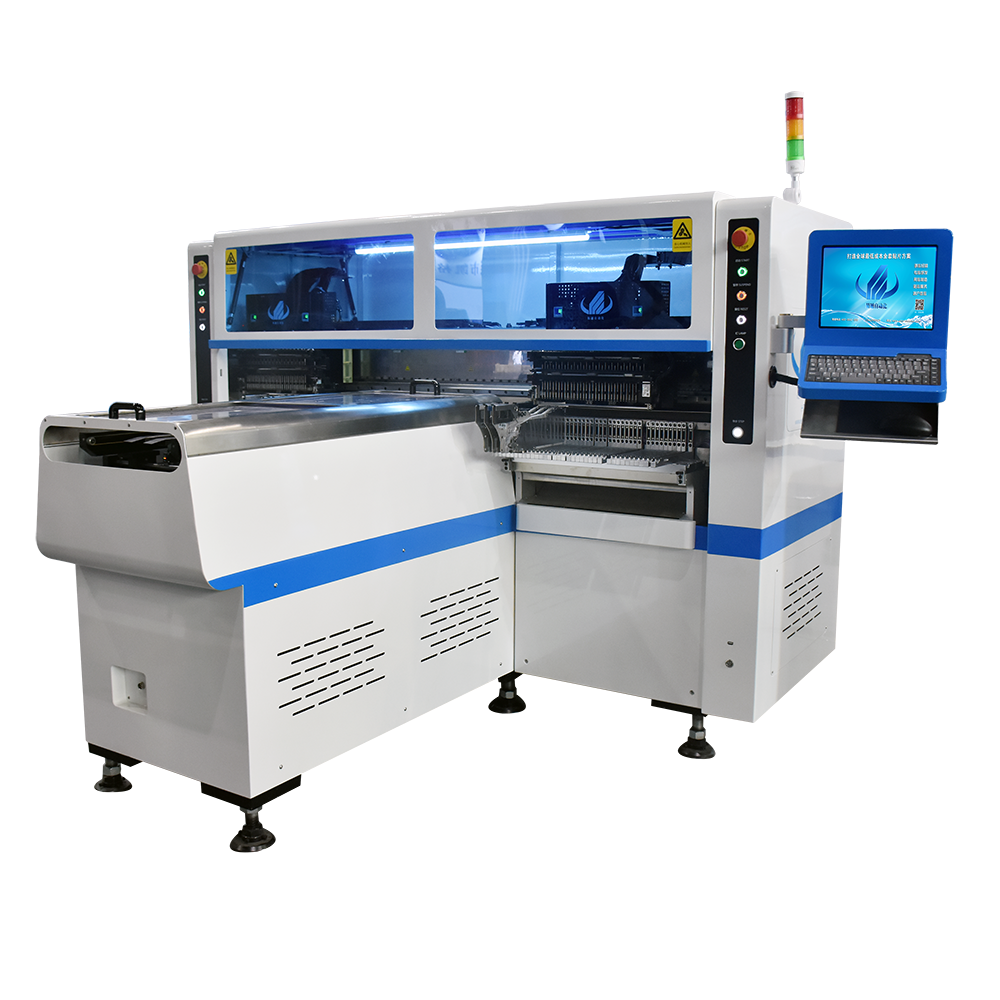

Dual arm magnetic linear LED high speed pick and place machine HT-F9 with 250000 CPH
Belongs to category:
Key words:
ETON
Product Description
Features
1.HIGH PRODUCTIVITY

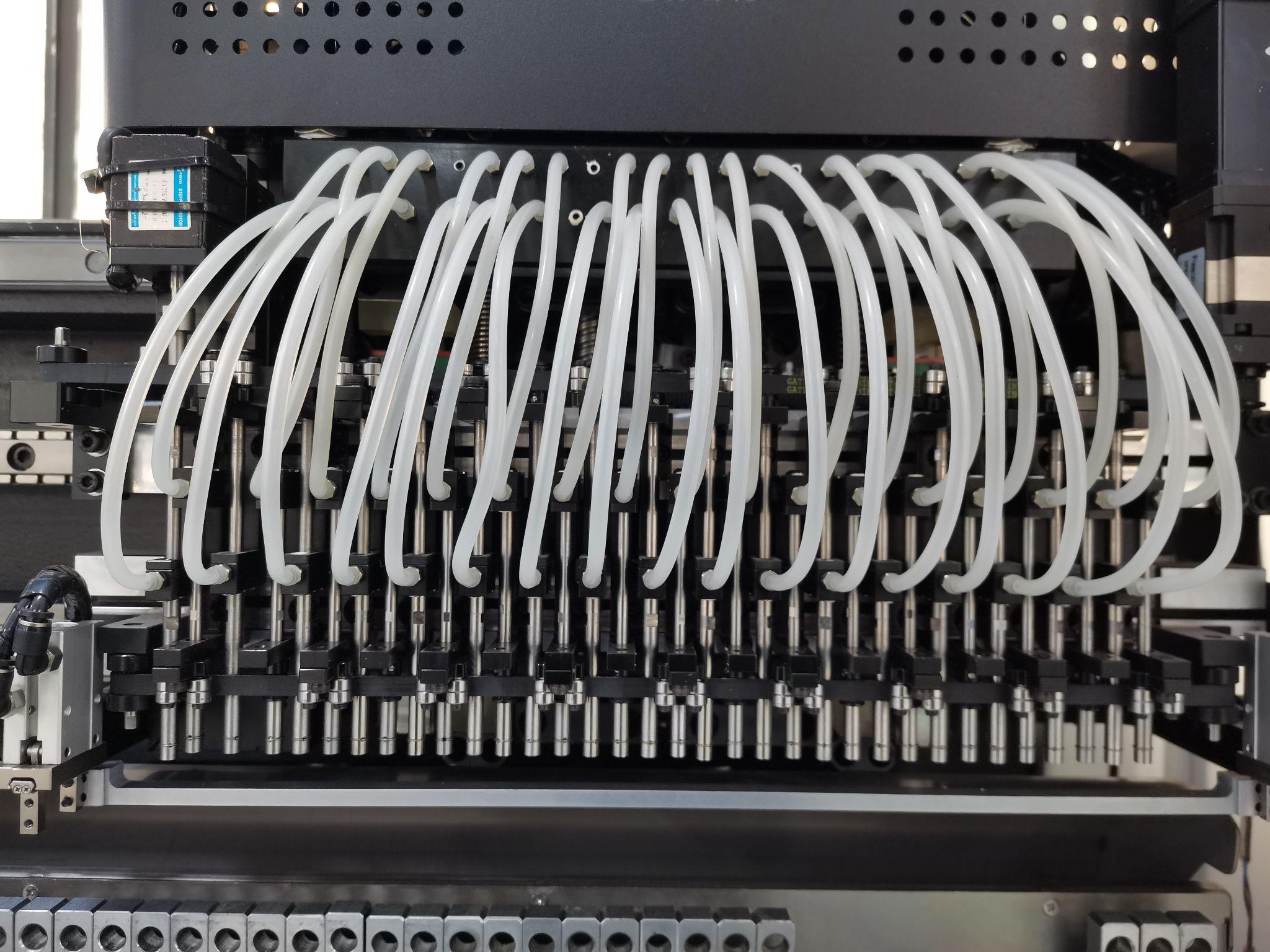

ETON R&D Adjustable Placement Head
Component picking position can be adjusted according to PCB pad pitch,min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor,capacitor, bridge rectifier etc.wide component range.
Unique Leakage Detection And Individual Feeding Function
Recognition cameras record the component leaking position of PCB,independent Angle and mounting can be achieved by a separate feeder.
Ultra-high-speed-Capacity
The placement head adopt the method of twice time picking and once time placing, through the improvement of placement process shortening the way of placement, the optimum capacity reach 250000 CPH.
2. FLEXIBLE PRODUCTION
Adjust the conveying platform according to various roll to roll strips,range 250±10mm,the max length range is 1M per cycle.
The distance of the feeder station can be flexibly adjusted to achieve group picking and group placing,so as to realize the function of two time picking and once placing.The range of feeding station is double of placement head, and can produce four kinds of materials at the same time.
Intelligent electric feeder,supporting high-speed machine series.
3. HIGH PERFORMANCE
- Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors.
- Automatic production with identification data,correction and fill missing components automatically.
- The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
- With the function of filling missing component automatically, realize Industry 4.0 Unmanned Workshop.
- Compliant with CE standards.
Parameter
|
Model |
HT-F9 |
|
PCB |
|
|
PCB Length Width |
Max:1200*330mm Min:100*100mm |
|
PCB Thickness |
0.5-5mm |
|
PCB Clamping |
Adjustable pressure pneumatic |
|
Mounting way |
Group to take and group to mount |
|
Vision System |
|
|
Mounting Height |
≤5mm |
|
Mounting Speed |
250000CPH(Optimum speed) |
|
Components |
LED3014/3020/2835/5050 and resistor,capacitors,bridge rectifiers etc. |
|
Feeding System |
|
|
No. of Feeder station |
68PCS |
|
No.of head |
68PCS |
