Pneumatic Stencil Cleaning Machine--ET-SCM750
Belongs to category:
Key words:
ETON
Product Description
Features
● With different solutions and solvents, it can clean solder paste steel mesh, red glue steel mesh, resin mesh, and copper mesh.
● SUS304 all-stainless steel body, beautiful, wear-resistant, corrosion-resistant, in line with environmental protection requirements and standards.
● All pipes, angle seat valves and other control components are made of SUS304 material, and no lance glue pipes are used.
● Pneumatic operation, no electricity, no safety hazards such as fire.

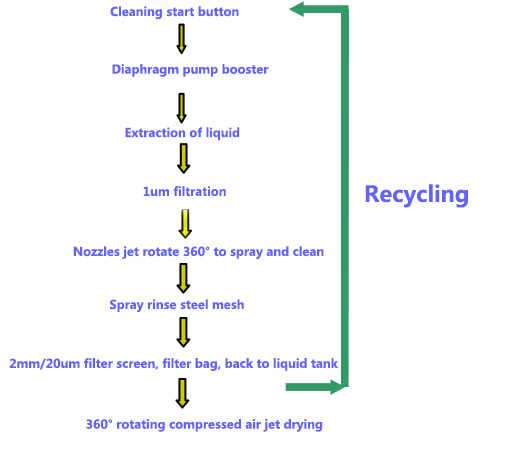

● High-density isobaric double-sided rotating cleaning nozzle: strong cleaning power and will not damage the tension of the steel mesh. 6. Three-stage filtration system, low exhaust port and S-shaped exhaust pipe design, solvent recycling.
● Large filter barrel, more convenient to replace the filter element; large flow rate, strong cleaning ability.
● Optimized rotation mechanism, the spray rod rotates more smoothly and without wear.

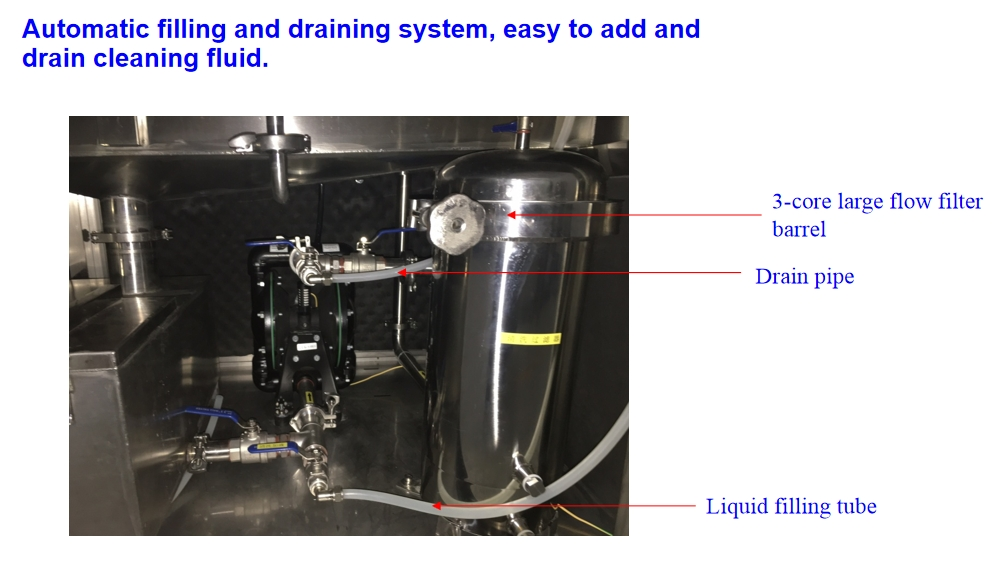

● One-button operation and automatic liquid addition and discharge function, very easy to operate.

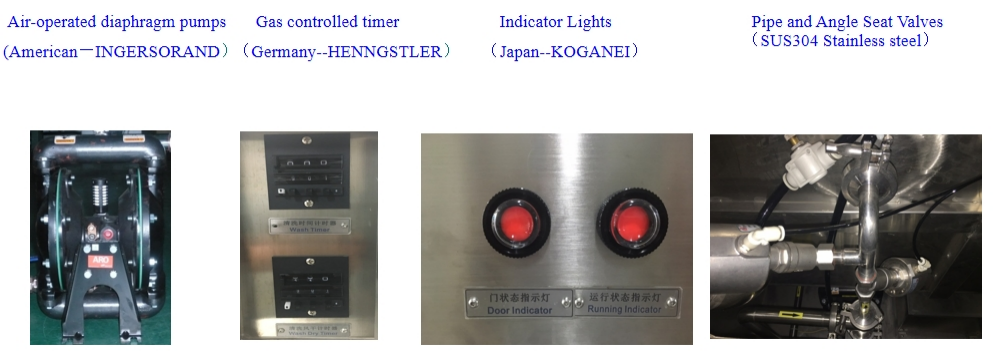

● Global high-quality parts to ensure excellent quality, stable performance and long service life.
● Modular control and quick-plug design make maintenance more convenient.
Parameter
|
Applicable steel mesh size |
Max 750mm(L) ×750mm(W) × 40mm(H) |
|
Cleaning fluid capacity |
Max 40L (Compatible with both solvent and water-based cleaning fluids) |
|
Cleaning method |
360° double-sided spray boom rotation isobaric jet cleaning |
|
Drying method |
360° double-sided spray boom rotation compressed air drying |
|
Recommended cleaning time |
3-5 minutes (solder paste steel mesh) |
|
Recommended drying time |
3-5 minutes (solder paste steel mesh) |
|
filter |
Level 1 1mm filter screen - to protect the pump; Level 2 20um filter bag - to filter solid particles; Level 3 1um filter element - to filter solder paste and red glue. (Liquid circulation filtration) |
|
Gas supply |
0.5Mpa~ 0.7Mpa |
|
Gas consumption |
400-600L/min |
|
Machine weight |
About 230Kg |
|
Exhaust port size |
Φ120xH30mm |
|
Machine size |
800mm(L)×950mm(W)×1630mm(H) |
