YT20L PICK AND PLACE MACHINE
◆No Of head：Double side: 104 PCS (Single side:52PCS)
◆Mounting Speed：98000 CPH
◆Max PCB Size：250±10mm*any length(option)
◆Feeding way：Electric feeder
Belongs to category:
Key words:
ETON
Product Description
Features
- LED chip, chips components, IC, etc one time mounting;
- Two lane, two gantry, can mount two different products at same time ;
- Save much time for production changeover and sample proofing;4.X,Y, and Z axis all adopt self-developed high-end magnetic linear motor;
- Y axis adopt double drive gantry structure
- Apply to 0201mm~15*15mm tape reel package
Parameter
|
Model |
YT20L |
|
Dimension |
2240mm*2070mm*1650mm |
|
Total Weight |
2200kg |
|
PCB Length Width |
250±10mm*any length(option) |
|
PCB Thickness |
0.1-0.5mm |
|
PCB Clamping |
Cylinder clamping, vacuum adsorption |
|
Fixed rail |
2 Rails, 2 gantries |
|
System |
Windows10 |
|
Input Device |
Keyboard, Mouse |
|
No. of Camera |
2 PCS （Head flight vision camera） |
|
4 PCS Mark camera |
|
|
Repeat Precision |
CHIP±0.03mm IC±0.025mm Cpk ≧1.33 (3σ) |
|
Mounting Height |
Standard: ≦16mm Special setting:≦10mm |
|
Mounting Speed |
98000 CPH(Under best condition) |
|
Components |
0201~15*15MM packaging material |
|
Components Space |
0.2mm |
|
No. of Feeders Station |
Double side: 104 PCS (Single side:52PCS) |
|
No. Of spindle |
Double side: 20 PCS (Single side:10PCS) |
|
Power |
220AC 50HZ |
|
Power Consumption |
1.5kw |
|
Operating Environment |
23℃±3℃ 45%~70%RH |
|
Transmission Direction |
Single(left→ right or right→ left) |
|
Transmission Mode |
Online drive |
|
Position Mode |
Optical |
|
Air consumption |
0.4-0.6mpa (4-6kgf/cm2)150L/min |
|
Electrical control |
Independent research and development by ETON |
|
Motion control card module 1 set |
Independent research and development by ETON |
|
X,Y,Z Axis Drive way |
High-end magnetic linear motor |
|
Feeding way |
Electric feeder |
|
Production management MES system interface |
Customized |
|
Input Device |
Keyboard, Mouse |

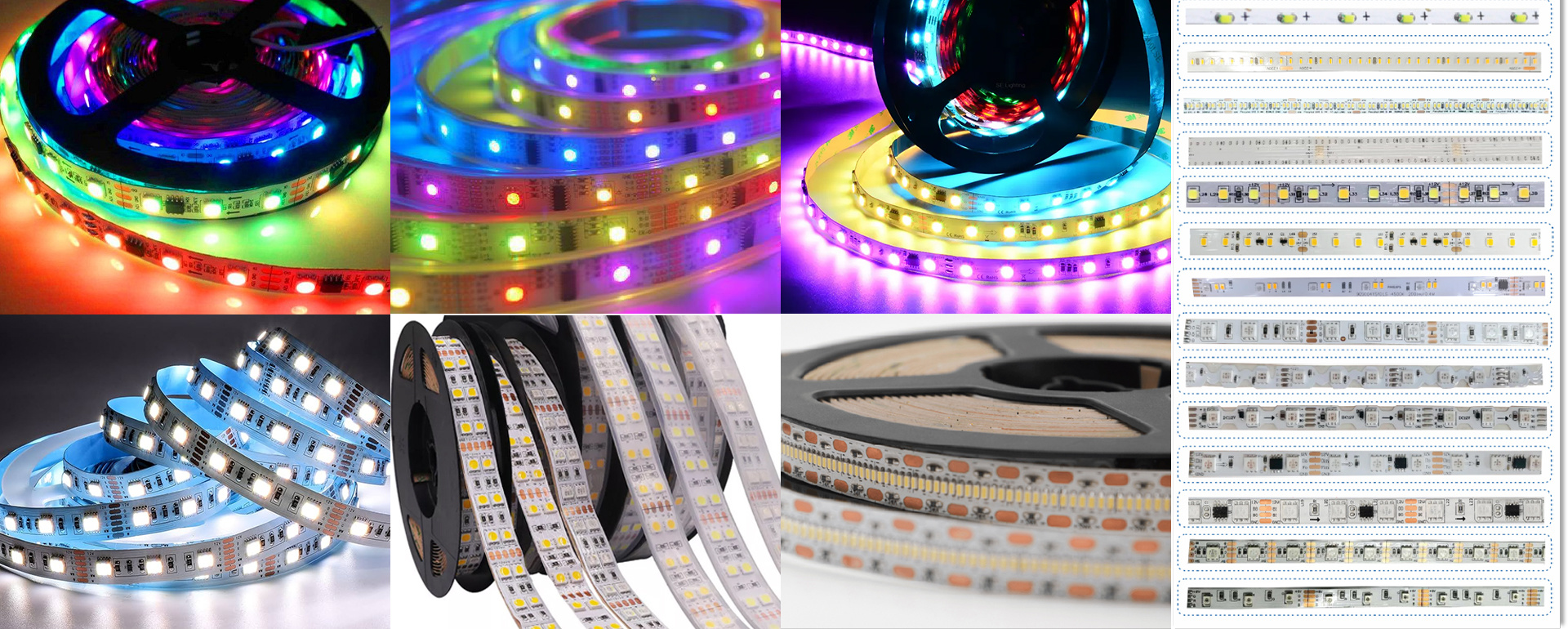

Application
